Product Image

frogTerminal KL white

1,748.00 € 1,748.00 € 1748.0 EUR

(Total : 1,748.00 € ) 1748.0 EUR

1,748.00 €

(0% Discount)

frogTerminal KL white

Add a new review

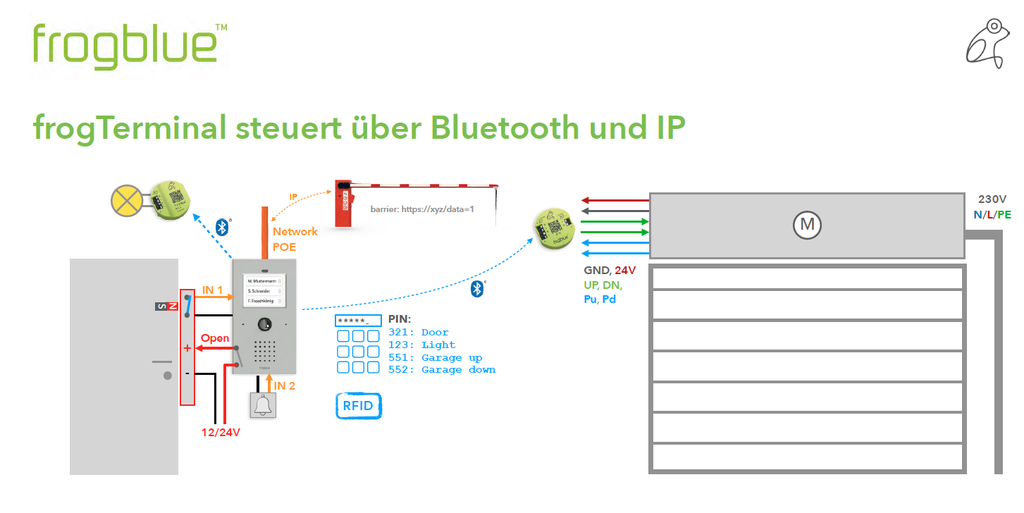

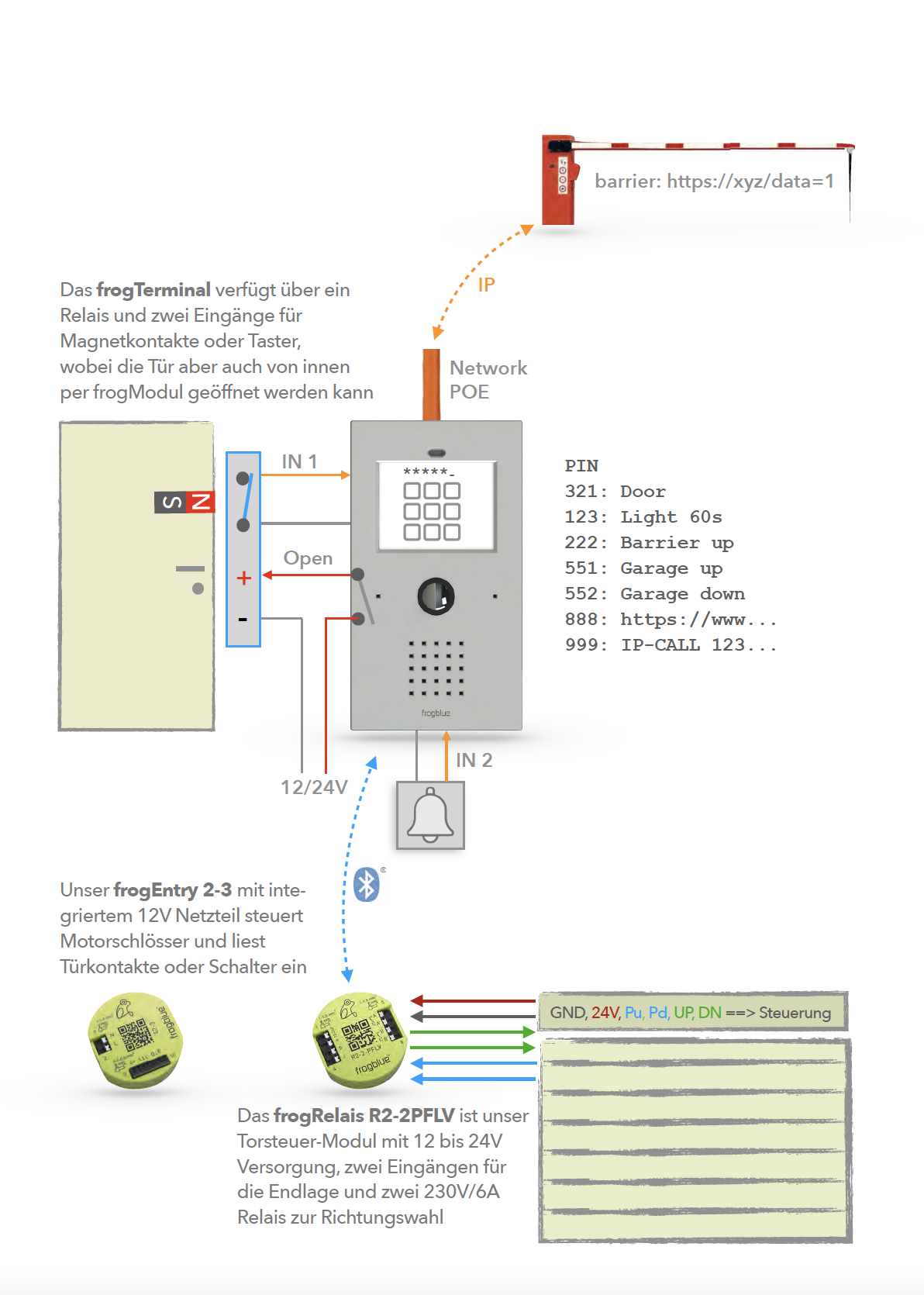

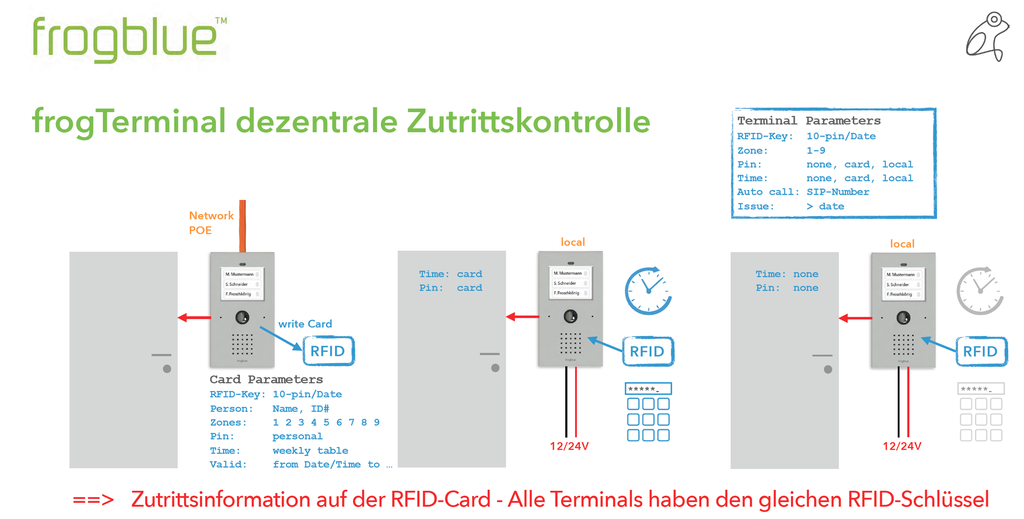

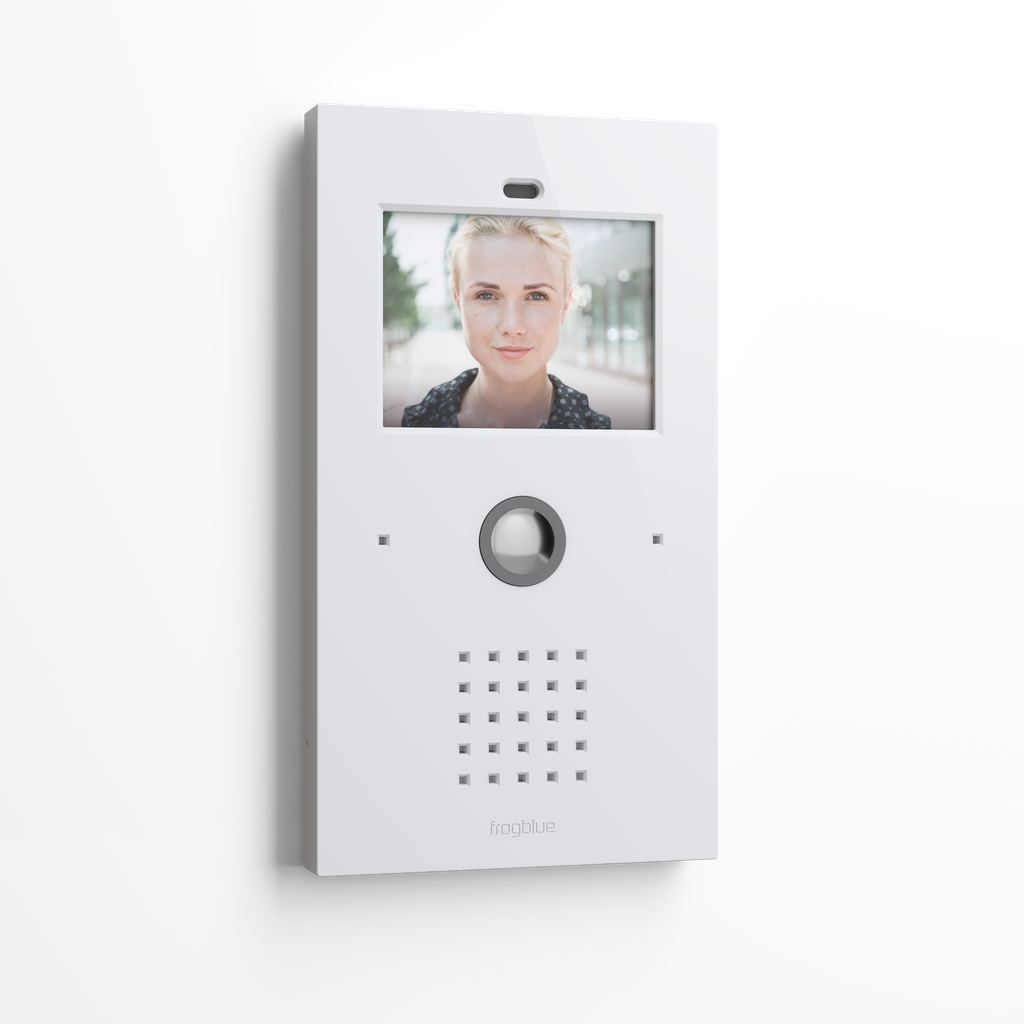

SIP video terminal with hemispheric 180° camera and 8 MP resolution. Integrated 3.5" touch display for flexible display of several bell buttons or functions (multi-party capable). Access control with PIN and/or RFID interface (MIFARE® DesFire® EV2). Connection and power supply via network cable (PoE) or 24 V AC/DC via bell wire and WLAN. Integrated potential-free relay (max. 24 V/1 A) and 2 potential-free inputs. USB-C connection for expansion modules. Expansion options via integrated Bluetooth® frogblue mesh interface. IP54 weatherproof.
Surface: plastic; colour: white


1,748.00 € 1,748.00 € 1748.0 EUR

(Total : 1,748.00 € ) 1748.0 EUR

1,748.00 €

(0% Discount)
  • Inputs
  • Outputs
  • Integrated logic module
  • Comfort and timer functions
  • Microphone
  • Loudspeaker
  • Proximity sensor
  • Room temperature sensor
  • Light sensor
  • Door opening function
  • Gateways
  • Camera resolution
  • Type
  • Diagonal
  • Resolution
  • power supply
  • Mains frequency
  • Typical Power consumption
  • WLAN
  • Bluetooth®
  • Typical radio open field range
  • Ambient temperature
  • Storage temperature
  • Air humidity (during operation)
  • Core cross-section
  • Stripping length
  • Casing colour
  • Max. Cable length of the inputs ø 0,5mm²
  • Packaging size
  • EAN 1 unit
  • Mounting type
  • Degree of protection

This combination does not exist.

Add to Cart
Brand: frogblue


  • KL
  • Share:


    The frogblue frogTerminal video door intercom is based directly on the integrated SIP telephone world standard and supports multi-party scenarios through to large-scale distributed projects. Its strength lies in the simultaneous integration of several SIP telephone systems and SIP servers without additional hardware.

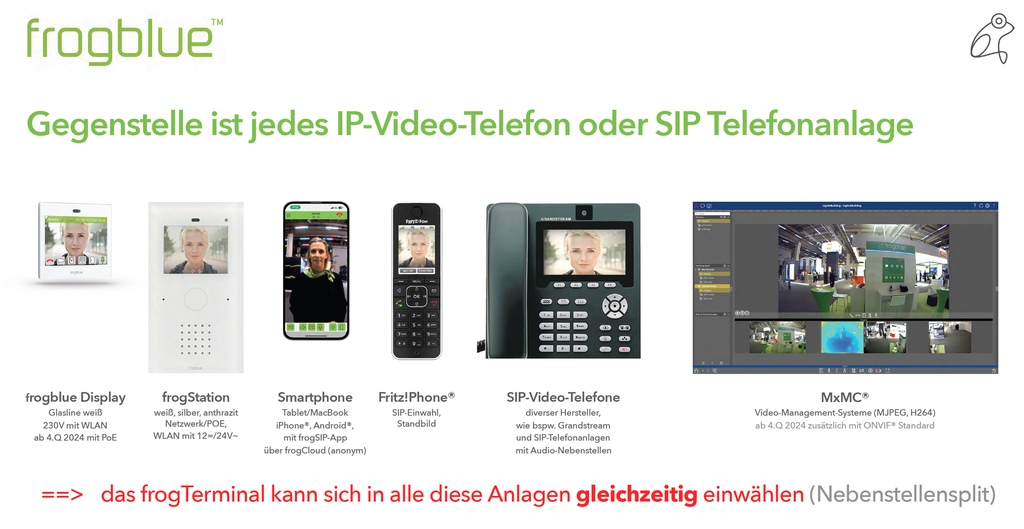

    In addition, frogblue supports direct SIP calls to any IP video phone. Smartphones are automatically connected to the door intercom via a call using our SIP cloud. The 8 megapixel camera with powerful optics guarantees a full 180° panoramic view. Speech is crystal clear even at high ambient volumes. Both doorbell events and access via PIN or RFID are stored in the video logbook. Incorrect entries and the opening of the door itself are also logged.

    The frogTerminal communicates directly with any IP telephone system via SIP and network without an additional box.

    Safety information

    Electrical appliances may only be installed and assembled by qualified electricians. Failure to observe the instructions may result in damage to the appliance, fire or other hazards! Risk of electric shock. Country-specific regulations must be observed.
